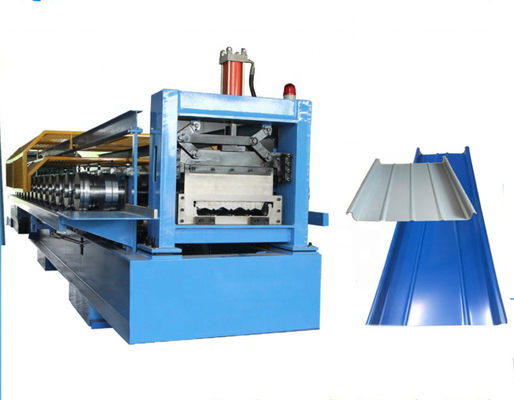

Building Material Shops Cheap Price POS Seam Roof Panel Roll Forming Machine POS Seam Roofing Machine

Building Material Shops Cheap Price POS Seam Roof Panel Roll Forming Machine POS Seam Roofing Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Product Description

Dimension

6000*1700*1600mm

Weight

about 6500KGS

Voltage of Motor

380V/50HZ/3PH or depend on customer

Main Motor Power for Running

7.5KW*2 sets

Hydraulic Power for Cutting

2.2KW

Forming Steps

13Steps rollers

Working Speed

0-15m/min

Height of Roofing

65mm

Effective Cover Width

300,400mm,425mm

Feeding Material Width

475,575-578mm, 600-603mm

Thickness for Al Sheet

0.7-1.1mm

Thickness for Steel Sheet

0.7-1.0mm

Min. Width of Tapered Roofing

250mm

Min. Length of Tapered Roofing

1000mm

Cutting, Forming Tolerance

±2mm

Roller material

45# steel with machining----Fine Machining

---Polishing---Plated Chrome---Polishing;

Material of shaft

High grade 45# forged steel

Shaft Diameter

85mm

Accessories

Main Accessories:

(1) Main Standing Seam Roof Panel Machine;

(2) 5 Tons Manual Decoiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System with touch screen;

(5) Device for making taper standing seam roofing;

(6)Hydraulic Forming Cutter;

(7) Run out table;

(8)Manual Seamer;

(9) Tools;

Main Usage:

1. One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings

2. Can automatically product variable width of roofing from 300mm to 500mm;

3.Widely use in the large project such as:railway station,airport , gymnasium etc.

4.Can product trapezoid roofing and straight roofing.

Feature: Can be packed and worked in one 20'GP or 40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.
