Product Description

Corrugated roll forming machine is popular in Africa and South America. There are two main kinds of corrugated tiles. We can find out difference from thickness. One is produced by corrugated sheet making machine. The thickness is from 0.25-0.8mm. Another is 0.14-0.24mm made by Barrel corrugated roll forming machine. Here, will show normal thickness for corrugated roof roll forming machine. And this corrugated roll forming machine is made for Bolivia and Chile.

Name	Chile and Bolivia 840 trapezoid roof panel and 836 corrugated roll forming machine
Material	Color steel
Material width	1000mm( 914/1219/1220/1250mm customized)
Control system	Full automatic Delta brand system
Capacity	1. 8-15m/min 2. 16-27m/min
Thickness	0.3-0.8mm( 0.3-0.6mm)

Drawings

使用说明

Corrugated roof roll forming machine is popular in the world. As you know, different countries, different popular tiles. There are many kinds of coils. Feeding width means the width of steel coil:

762/914/1000/1200/1220/1250mm. The Effective width means: The width of corrugated sheet: 608/760/836/988/988/1064mm. And the price of corrugated machine is changed with the width of material coil.

Description of corrugated sheet
使用效果描述

The height of the corrugated sheet is 18mm. The pitch is 76mm. There are many similar drawings for corrugated. But most people use lower height of corrugated sheet to cheat their clients. Because lower height, lower price of machine. So when ordering, you must confirm the drawing what is same in your market

Detailed Images

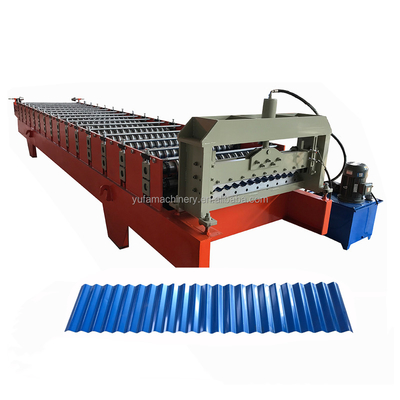

Automatic corrugated roll forming machine line including: the roll forming machine body; Control box. Hydraulic pump for cutthing and manual decoiler. So you can start your business.

Related Products

After Sales Service

Company Introduction

Hebei Yufa Tile Press Equipment Co.,Ltd. is one professional manufacturer for roll forming machine. We are established in June 1996. We have four branch factories, Tianjin Yufada Industry Co.,Ltd is located in Tianjin city. Hebei Yufa Tile Press Equipment Co.,Ltd and Hebei Yufa Roll Forming Machinery Co.,Ltd are located in Cangzhou city, Hebei Province. Beiing Yufa Pengxiang Floor Bearing Plate Produce Co.,Ltd is located in Beijing city. Our main business is customized roll forming machine. We would like to design and produce customized roll forming machine with clients. Our purpose is “Client is first,Service is first”. Service is after-sale service. We are 24 hours on line for all of our clients. We pay our attention to service after you receive the roll forming machine. We have confidence in helping you to be stronger and stronger.

FAQ

1. Q: Are you a manufacturer?
A:Yes, we are manufacture with four branch factories.

2. Q: How should I do if I would like to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.

3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.

4. Q: I am new in this field. How could i understand the machine very well
A: Why not contact me whatsapp: 008615031898708/008616632710788. I promise you that you will be professional after you get from me. It is true
thing.

5. Q: I receive a lot of quotations, they are big range, How could i choose?
A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for
contacting with me.

6. Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

7. Q: I have not whatsapp and skype, how could I contact with you
A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.

8. Q: What do you think what is the most important for roll forming machine
A: Drawing ! Drawing ! Drawing

9. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
