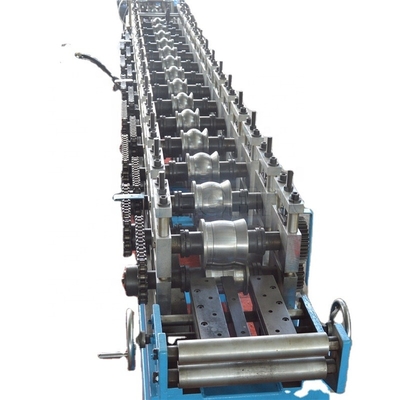

Hotels Shutter Door Bottom Roll Forming Machine PLC Control System Shutter Window Slat Roll Forming Machine

1 Set
MOQ
$10,000.00(1 - 1 Sets) $90,000.00(2 - 99 Sets) $5,000.00(>=100 Sets)
Prijs
Hotels Shutter Door Bottom Roll Forming Machine PLC Control System Shutter Window Slat Roll Forming Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty: 2 years
Product name: shutter door bottom roll forming machine
Usage: door bottom
Function: Forming
Voltage: 380 / 50 HZ / 3 PHASE
After-sales Service Provided: Service Machinery Overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Roller material: 45steel
Shaft material: 45# Steel Diameter 60mm Shaft
Production capacity: 10-15m/min
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Export standard sea package with film and steel, other spare parts and some small parts are packed in plywood box
Supply Ability: 20 Set/Sets per Month
Productomschrijving
Product Description
The shutter door is a door or window that consists of a number of horizontal bars (or sometimes strip or mesh systems) that are hinged together. On the door, the action may be maneuverable. It provides weather protection and protects windows from vandalism and burglary. Rolling shutter doors have many applications, including vans, garages, kitchens, schools, prisons and warehouse doors. In some parts of the world, rolling shutters are subsidized by local governments due to inherent safety concerns. In areas that are frequently exposed to inclement weather, the rolling door is used as an insulation method and the window can be protected from hail damage.
Version to design
technological process
Specification
Name
specification
Suitable material
Color steel sheet , galvanized steel sheet,
Thickness of material
0.7-1.2mm
Hydraulic station power
3KW
Hydraulic oil
36#,40#
Diameter of principal axis
50mm
Electric tension
380V 3phase 50HZ or as the customer's requirement
Material of roller
Cr12 steel quenched
Processing speed
15-20m/min
Processing precision within
About 10m
Material of cutting blade
Cr12Mov with quenched treatment
Kind of drive
Gearbox
Roller station
20
The size of machine
11500mmX650mmX800mm
Weight of the Machine
3000-3500KGS
Main Components
No.
Name
Qty
1
Decoiler
1
2
Main roll forming machine
1
3
PLC Control box
1
4
Hydraulic station
1
5
Output table
2
Delivery & after-sales service
Company Profile
We are a manufacturer specialized in customizing roll forming machine, tube mill, slitting and cut to length line and PU sandwich panel line. With our advanced techniques and experienced staff members, we can produce simple profiles as well as complex components with precision tolerances. Most of our main production staff members have about 10 years of experience, ensuring quality machinery and high values for our customers. Our products are widely used in Construction, Food Services, Lawn & Garden Shelving, Automotive Fencing, Lighting Store Fixture, Industry Display Furniture, Material Handling Products, Sports Goods, Farming, HVAC, Mining, Transportation, etc. Advantages of Roll Forming: Roll formed parts have a variety of shapes, angles and curves. Many materials are suitable for our custom roll forming machines, which allows us to provide components and parts with a wide variety of plated, pre-painted and laminated materials to meet your roll forming needs. We design products that best meet specific needs. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future. Welcome to visit our factory!!!
