Kenmerken

Specificaties

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction worksÂ

Showroom Location: None

Condition: New

Type: PU FoamShutter Door Machine

Tile Type: Aluminum

Use: Door

Production Capacity: 10-20m/min

Voltage: 380V 60Hz 3Phases

Dimension(L*W*H): 22000*1500*1200mm

Weight: About 2.5T

Warranty: 5 years

Key Selling Points: Automatic

Rolling thinckness: 0.28-0.4mm

Feeding width: other

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 5 years

Core Components: Pressure vessel, Motor, other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Name: Pu Foam Shutter Door Roll Forming Machine

Raw Material: Aluminum plate

Thickness: 0.27-0.35mm

Working Speed: 10-20m/min

Driving Way: By Gearbox

Forming Roller Station: 38 Roller Stations

Cutting Type: Fly Cutting

Control system: PLC(imported Brand)

Bland of Cutting: Cr12

Roller material: Cr15 steel, quenching

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certificering: CE/ISO 9001

Basis informatie

Certificering: CE/ISO 9001

Betalen & Verzenden Algemene voorwaarden

Packaging Details: *Nude packing in one 40 feet container, but fixed well with steel rope, other components are with waterproof. * The whole machine will packed water proof paper , ane we will paint oil on the roller and shaft . * We will fix machine with container by steel

Supply Ability: 20 Set/Sets per Month

Productomschrijving

Product Description

With the development of the economic , the demand of the insulated shutter door produced by the PU foam shutter door roll forming machine is more and more . The PU foam shutter door has the good effect of heat insulation . These kind of shutter door not only has beautiful surface but also light weight . So it is more and more popular all over the world . In order to meet this market need , the R&D department of our company develop this PU Foam Shutter Door Roll Forming Machine.

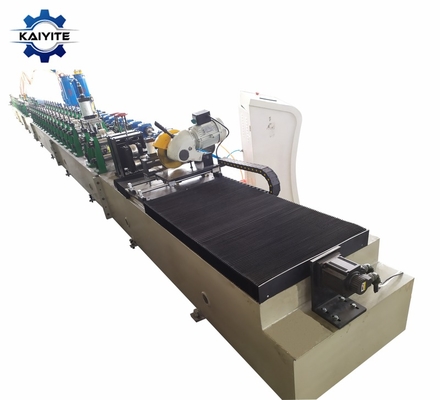

Product Show

The Chart of the Process Flow

Manual Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- Plc Control System -- Hydraulic Cutting Device -- Product Receiving Table

Specification of Components

3T Manual Decoiler

Frame structure : H-beam and Steel plate seamless welding;

Loading capacity : 3T;

Inner diameter : 450-530mm;

Width coil width max:530mm.

Roller of this machine

Roller Station : 37 Stations

Roller material : Cr15 steel, quenching

Foaming machine

Automatic heating Rate of flow can be adjustable A B capacity :80 kg Weight:370

PLC Control System

Voltage : 380V 50Hz 3phases or Customerization

Brand of PLC:Delta

Hydraulic Cutting device

Cutting type : Hydraulic cutting

Blade of Cutting : Cr12,quenching treatment

Company information

FAQ

Q1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine
Q2. What are the main key points for selecting right machines?
A2: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 5 years free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food
Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for
contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A8: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!

If you need roll forming machine , you can contact us freely.
