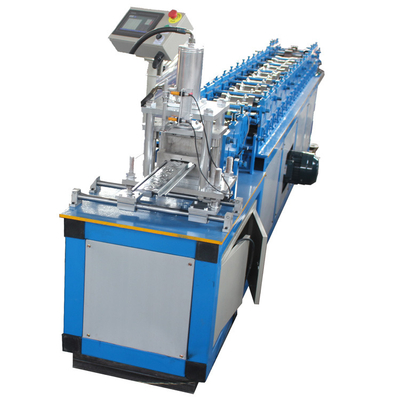

Long Service Life Shutter Door Rolling Shutter Slats Strip Making Roll Forming Machine

1 Set
MOQ
$11,500.00(1 - 4 Sets) $11,000.00(5 - 9 Sets) $10,500.00(>=10 Sets)
Prijs
Long Service Life Shutter Door Rolling Shutter Slats Strip Making Roll Forming Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Features: long service life
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear, Pump
Condition: New
Application: shutter door
Automatic Grade: Automatic
Production Capacity: 15-20 m/min
Voltage: 380 V
Power: 3 KW
Dimension(L*W*H): 5600*850*1300 mm
Weight: 2500 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Rolling thinckness: 0.8-1.0 mm
Material hardness: 350-550 mpa
Main motor power: 3 KW
Hydraulic station power: 3 KW
Roller stands: 16 station
Control system: PLC(imported Brand)
Cutting blade: CR 12 material
Shearing type: stop and start cutting
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: NAKED with plastic film.
Supply Ability: 20 Set/Sets per Month
Productomschrijving
Product Description
Specification
5 Ton manual decoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually.
The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases.
Feeding table
Put the raw material(steel strip) through the beach to manufacture and process, it can guarantee that the products are neat,
parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main roll forming machine
Material of rollers:45# steel，roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the
molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
PLC control cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
Shearing mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades:
Cr12,quenching treatment
Material Thickness
0.8-1.2 mm
Working Speed
15-20 m/min
Roller Stations
16 stations
Material of Roller
45# steel quenching process and chrome coated
Material of Main Shaft
45 steel forged
Main Motor Power
3 KW
Electrical Hydraulic Station Power
3 KW
Hydraulic Station Pressure
12.0 Mpa
Material of Cutter
Cr12 Mov HRC 58-62
Driving Mode
Single chain 1 inch
Company Profile
Packing & Delivery
1. who are we?
We are based in Hebei, China, start from 2021,sell to Africa(30.00%),South America(20.00%),Southeast Asia(15.00%),South Asia(15.00%),North America(10.00%),Mid East(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Oceania(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.what can you buy from us?
roll forming machine,cz purlin machine,double layer roll forming machine,Stud & Track Roll Forming Machine,Floor deck roll forming machine

4. why should you buy from us not from other suppliers?
We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet
International Standard. We are the leading manufacturer and reported of roll forming machine in China.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram ,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
